Curve Tracing Test
Curve tracing is the process of analyzing the current-voltage characteristics of an electrical path. The curve trace equipment normally been used to do this activity by probing two pins [normally between the ground and tested pin] to determine the behavior of the current as the voltage is varied. Below some of the example images, obtained from the curve tracer.
Curve trace is useful to verify the failure pins and this information is normally very important to perform the next step of the analysis.

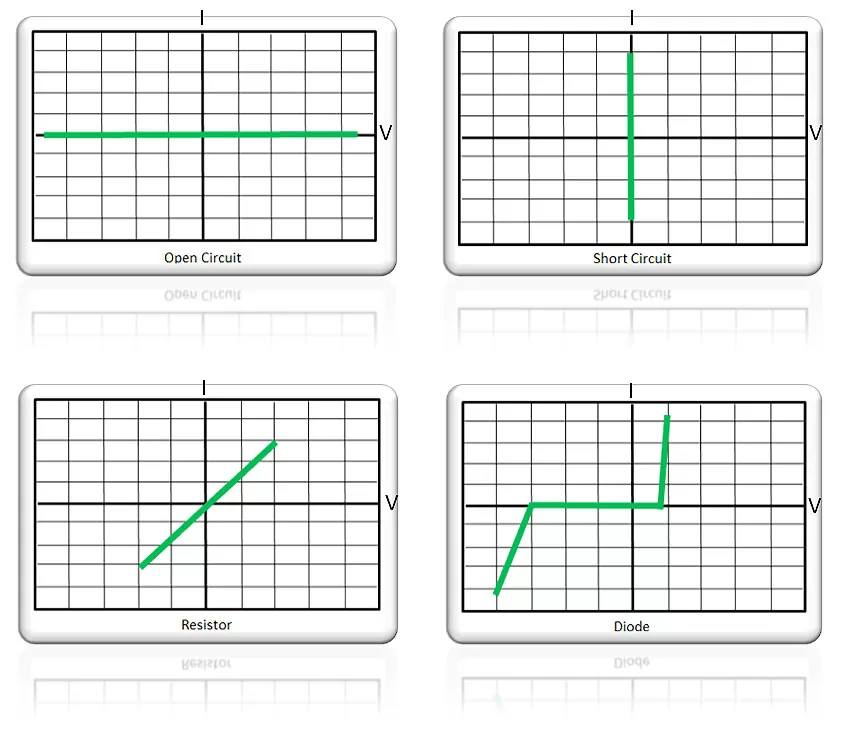

Below are some of the images of the curve tracer output
